WARPZONE.

Warpzone is a chiptune synthesizer built around the 2A03, the sound chip that scored a generation of 8-bit games. It is not a sample pack and not a lo-fi filter. Every voice is synthesized live, with the chip's real quirks intact: the four pulse duties, the 32-step triangle staircase, the two-mode noise generator, the 1-bit sample channel, and the nonlinear way the hardware mixed them all together.

Two engines share this palette:

Classic is the hardware, honestly. Eight monophonic channels (five from the 2A03, three more from the VRC6 expansion), each with its own strip of controls, per-channel panning the real chip never had, and a per-channel step sequencer that plays the role of tracker-style macros.

Modern takes the same waveforms and puts them in a conventional polyphonic synth voice: up to 16 notes, dual oscillators, unison detune, and a full ADSR. Chip tone, synth workflow.

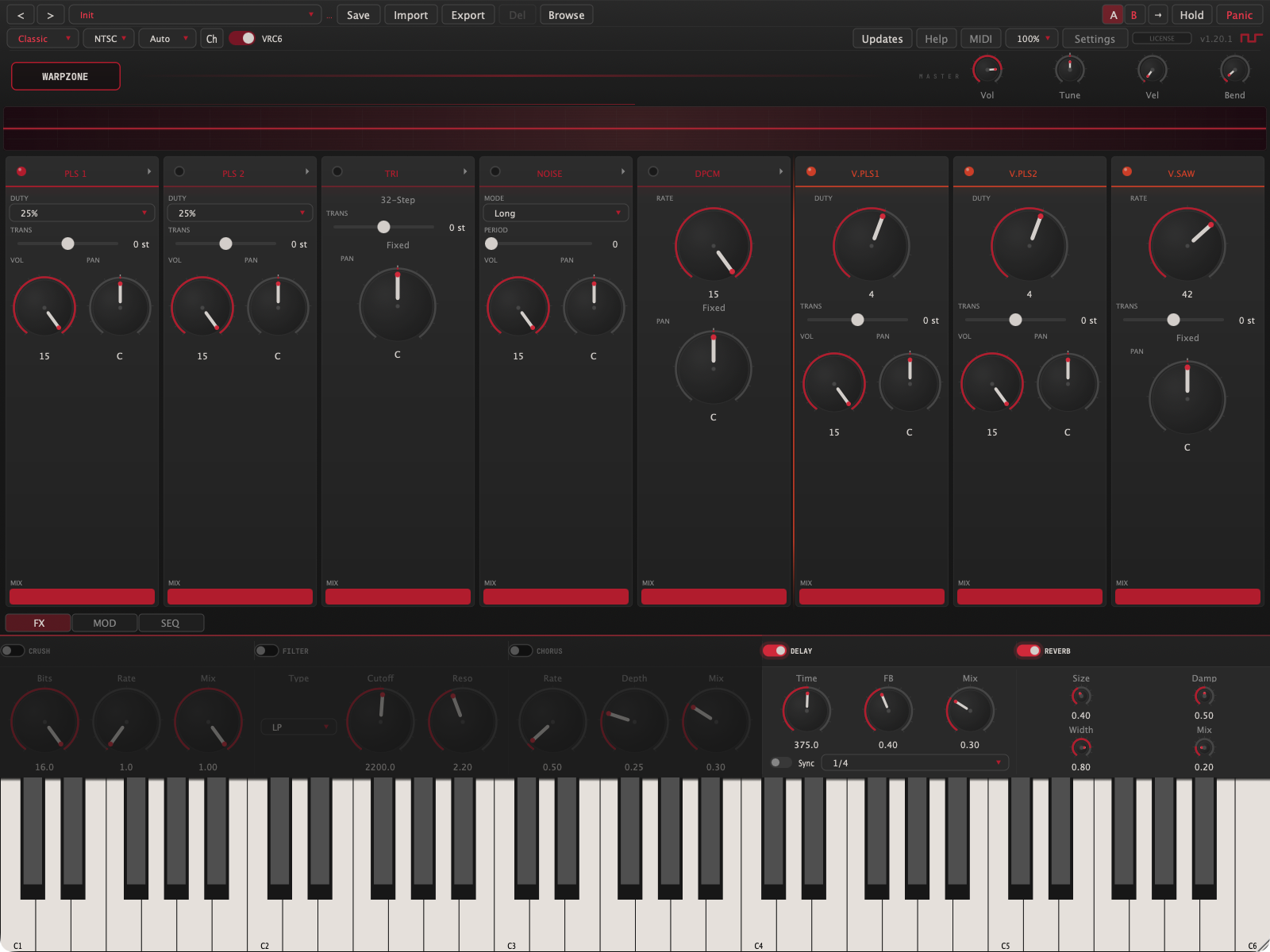

The interface stacks top to bottom: the top bar (presets, engine, global controls), a waveform display, the channel strips or Modern panel, the accordion bars (FX, MOD, SEQ), and a playable keyboard. Everything in this manual is reachable from that one window.

Install

On macOS, open the disk image and run the installer inside it, ticking the formats you want. It installs the manual and an uninstaller to Applications ▸ Stay Cool and Stay Cool.

On Windows, run the installer and tick the formats you want. If SmartScreen appears on the first run, choose More info, then Run anyway. Everything it needs is bundled, including the Visual C++ runtime.

On Linux, unzip the download and copy each format into place. The Windows zip, if you prefer it to the installer, goes to the same folders:

Restart your DAW afterwards so it rescans. Logic and GarageBand sometimes want a full quit and relaunch before a new AU appears.

For reference, the macOS installer places files at /Applications and /Library/Audio/Plug-Ins/{Components,VST3,CLAP}.

Activate

Your license key arrives by email right after purchase. Click the DEMO badge in the top bar, paste the key, and click Activate. Activation touches the internet once; after that the license verifies offline, forever. One license covers three machines. Chapter 12 has the full story, including offline activation and moving seats between machines.

First sound

Open the standalone or load Warpzone on an instrument track and play. The Init preset is a bare Classic patch. For a guided tour of what the instrument can do, step through the factory presets with the arrow keys. Names like Sequenced and Rock are whole performances: hold one key and let the step sequencer work.

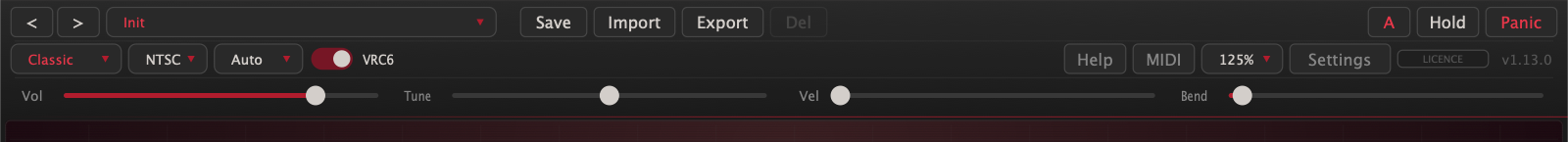

Presets row

Engine row

Master row

Four knobs, clustered under the MASTER tag: Vol (master output), Tune (±100 cents), Vel (velocity sensitivity, 0 means velocity is ignored, the hardware way), and Bend (pitch-bend range, 1 to 24 semitones).

Eight channels, each a strip, each one voice. Left to right: PLS 1, PLS 2, TRI, NOISE, DPCM, then with the expansion on, V.PLS1, V.PLS2, V.SAW. Every strip has an enable LED, a MIX fader (the channel's level after the chip), a PAN knob, and, on melodic channels, a TRANS transpose of ±24 semitones. The arrow in a strip's header opens its detail panel for the deeper hardware controls.

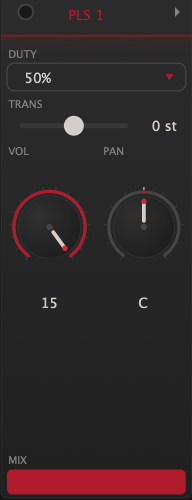

Pulse 1 & Pulse 2

The lead voices. Four duty cycles: 12.5% is thin and nasal, 25% is the classic lead, 50% is a hollow square, and 75% is the inverted 25% wave, which the chip renders identically to 25%. That duplicate is not a bug; it is the hardware being the hardware.

VOL (0–15) is the chip's own 4-bit level and part of the timbre. With Constant Volume off, VOL instead sets the speed of the hardware decay envelope, which counts the note down from 15; add Envelope Loop and it re-triggers endlessly for a buzzing tremolo. The sweep unit (period, shift, negate) bends pitch the hardware way, and yes, it will swallow the note entirely when the sweep runs out of range. That silence is authentic. Pulse 1 and Pulse 2 even negate their sweeps slightly differently, exactly like the chip.

Triangle

The bass voice. A 32-step staircase triangle one octave below the pulse range, with the gritty edge that quantization gives it. It has no volume control; the hardware never had one. Shape the level with its MIX fader, or shorten notes with the linear counter (LIN.RLD low = clipped, staccato notes).

Noise

A 15-bit shift register with two personalities. Long mode is full white noise for hats, snares, and wind. Short mode loops a 93-step sequence and turns metallic and pitched, the classic laser-engine buzz. PERIOD (0–15) runs from bright hiss down to low rumble. By default, played notes retune the noise (higher key, brighter noise); the factory drum presets fix the period instead so every hit lands identically.

DPCM

The sample channel: 1-bit delta-coded playback through a 7-bit converter, which is exactly why it crunches. Four built-in drums (Kick, Snare, Hi-Hat, Tom) plus sixteen user slots that accept .dmc or .wav files (loaded from the MOD bar's DPCM tab; they travel inside your DAW session).

Four keys map straight to the kit, matching a standard drum map: C2 kick, D2 snare, F#2 hi-hat, A2 tom. Any other key plays whichever sample the Sample menu selects. RATE (0–15) is playback speed; 15 is the drums' native rate, and lower values pitch them down into ever-darker territory. Notes do not track pitch here; RATE is the pitch.

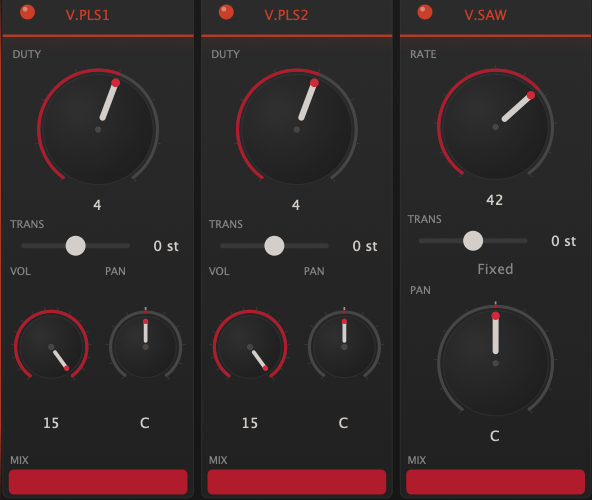

VRC6 expansion

Three more channels, from the VRC6 expansion chip found on a handful of late-era 8-bit game boards. The two VRC6 pulses have an eight-step duty knob (6.25% to 50% in even steps), a finer palette than the 2A03's four, with no envelope or sweep: cleaner, more synth-like. The sawtooth is a coarse 32-level accumulator saw, reedy and bright, unlike anything on the base chip.

The mixer is part of the sound

Warpzone mixes its channels through the 2A03's measured nonlinear converter curves, not a linear sum. Stacked pulses compress into each other; the triangle, noise, and sample channel share one curve, so a loud drum sample audibly ducks the bass. If a mix feels alive in a way a DAW mixer doesn't, this is why. Per-channel PAN (constant-power, displayed as C, L50, R100 and so on) then places each voice in stereo, a luxury the console never offered.

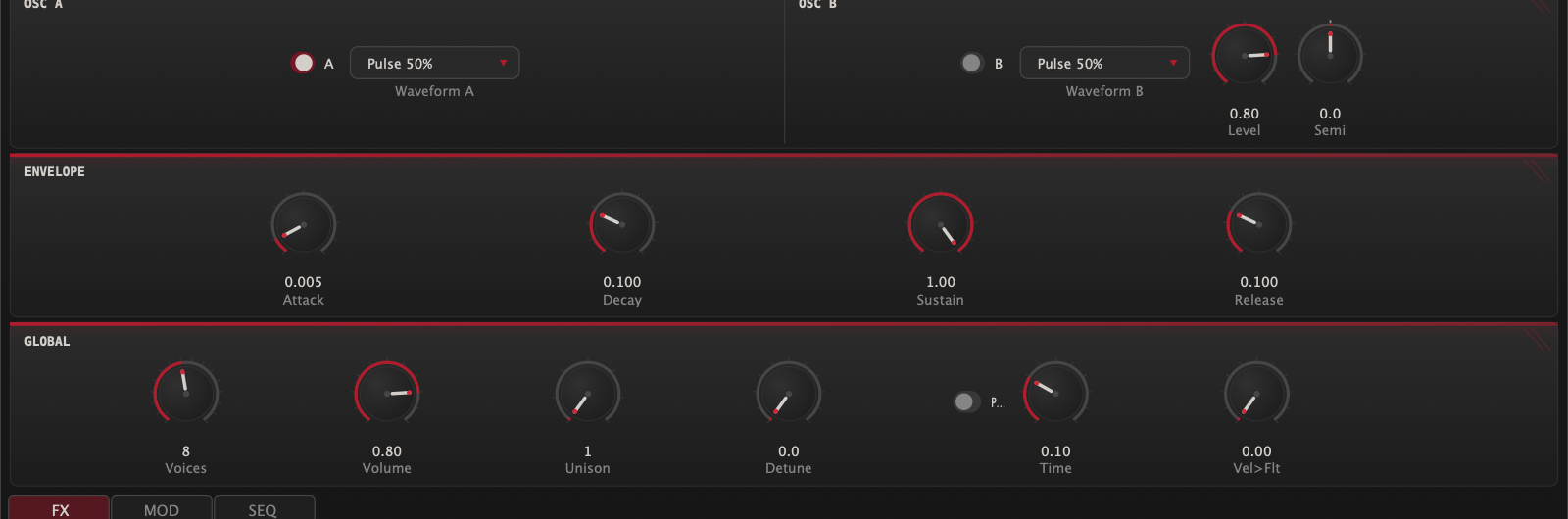

Switch the engine combo to Modern and the channel strips give way to a polyphonic synth that speaks fluent chip. Up to 16 voices, each with two oscillators drawing from the same seven waveforms: four pulse duties, the 32-step triangle, the accumulator saw, and the noise generator.

Oscillators

Osc A carries the note. Osc B layers on top with its own waveform, a Level control, and Semi detune of ±24 semitones in tenths, so it works as an octave or fifth layer, not just a fattener. Fractional detune beats slowly against A for movement.

Each oscillator shows its wave shape in a small display beside the menu. The display is a control: click it to cycle through the seven waveforms, right-click for the full list.

Envelope

A full ADSR per voice. Attack is linear for that instant chip snap; decay and release are exponential for natural tails. The time knobs are weighted toward the fast end, where chiptune lives: attack defaults to 5 ms.

The envelope section draws the curve, and the curve is editable: drag the nodes directly: attack, decay and release move horizontally, sustain vertically. The knobs and the curve are two views of the same envelope; use whichever feels faster.

Global

Two things Modern deliberately leaves behind: the nonlinear hardware mixer and per-channel panning. The Modern voice is mono at the source; its stereo width comes entirely from chorus, delay, and reverb. For a wide Modern patch, reach for those.

Routing modes (Classic)

The Modern engine ignores routing modes; it is simply polyphonic on all channels, and it responds per note to MPE controllers: pitch bend bends just that finger, slide (CC74) morphs Osc B’s level from silent through the knob setting to doubled, and pressure drives volume expression. Notes from a normal keyboard are unaffected.

Pitch bend

Range is the top bar's Bend slider. Bend retunes the pulses, triangle, and VRC6 voices; the noise and sample channels do not bend. In Split mode, bend follows its MIDI channel to that one voice, which means per-channel bend automation, a properly tracker-ish trick.

Control changes

The mod wheel needs no setup: push it and both engines add classic vibrato, up to ±50 cents, independent of the LFO section: the LFO stays a sound-design layer, the wheel is performance. It no longer writes to the LFO vibrato depth parameter, so riding the wheel cannot change a saved patch; if you preferred the old routing, map CC 1 with a Learn slot.

The MIDI button in the top bar shows this map plus four Learn slots. Click Learn, turn a knob on your controller, and that CC is captured. Targets include channel volumes, filter, effect mixes, and the LFO. A learned CC overrides the built-in map for that number, and your mappings survive preset changes.

Sustain and Hold

The sustain pedal (CC 64) and the Hold button do the same thing by different hands: while either is down, note-offs are suppressed. When the last of them lifts, everything releases together. If a stuck controller leaves the pedal down, CC 121 (reset all controllers) clears it, as does Panic.

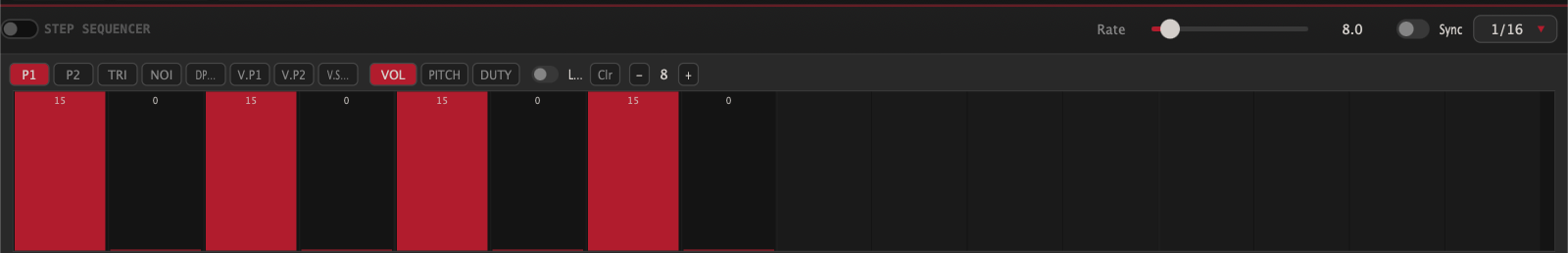

This is Warpzone's answer to tracker macros: a 16-step modulation sequencer, per channel, that retriggers from step one on every note-on. It does not play notes for you; it plays the voice, reshaping volume, pitch, and duty while you hold the key. It is the difference between a preset that sounds like a tone and one that sounds like a game.

The grid

Pick a channel (P1 through V.SAW), pick a lane, and draw:

Each lane has its own length, set with the − and + stepper or simply by drawing past the end. A lane of length zero is off. Clr resets the selected lane.

Loop, and lanes as polyrhythm

The Loop toggle applies per lane. Looped lanes wrap; un-looped lanes play once and hold their last value, which is exactly how a volume envelope should behave. Because every lane keeps its own length, a 3-step pitch loop against a 4-step volume loop drifts in and out of phase like a proper tracker line. Lanes advance in lockstep on the same clock; their lengths make the rhythm.

Clock

Rate runs 1 to 60 Hz free, or flip Sync and choose a division from 1/1 to 1/32, triplets included, locked to host tempo. 60 Hz is the magic number for authenticity: that is one step per video frame, the rate every classic soundtrack macro ran at, and the rate NTSC VGM-imported instruments arrive with (PAL imports arrive at their native 50 Hz).

The MOD bar holds four panels: LFO, portamento, the arpeggiator, and the sample channel's controls.

LFO

One global sine LFO, 0.1 to 20 Hz, with two depth controls that run simultaneously: Vibrato (pitch, up to ±2 semitones) and Tremolo (level, dipping below unity so engaging it never jumps the volume). It is free-running and does not retrigger per note, which keeps chords shimmering rather than pulsing in lockstep.

Portamento

Glide for the Classic engine, 10 ms to 1 second. The Modern engine has its own independent portamento on its panel; the two do not share settings.

Arpeggiator

The arpeggiator sits before the engines and drives either one. Hold a chord and it does the rest; release everything and it stops cleanly, no ringing tails.

DPCM panel

Enable the sample channel, choose the active sample, and load your own. .dmc files load raw; .wav files are converted to the chip's 1-bit format on the way in, which is where they pick up that unmistakable crunch. Sixteen user slots, embedded in your DAW session so projects stay portable.

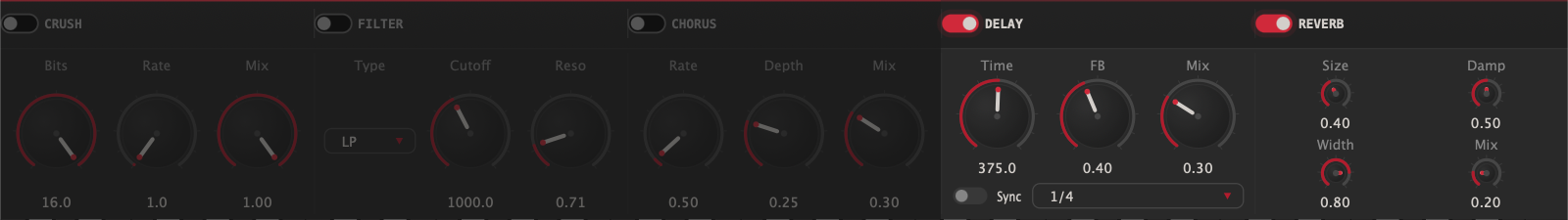

Five effects in a fixed chain, all off by default, every one chosen to flatter chip waveforms. The chain runs Crush → Filter → Chorus → Delay → Reverb, and the stereo split happens between Filter and Chorus. In the Classic engine your per-channel pans pass through untouched; in the Modern engine, chorus, delay, and reverb are the sources of width.

Crush

Bit-depth reduction (16 down to 1 bit, continuously) plus sample-rate reduction (up to 50×). The chip is already lo-fi; this is for going further, from vintage-handheld grit to total collapse.

Filter

A clean state-variable filter: low-pass, band-pass, or high-pass, 20 Hz to 20 kHz, resonance up to self-oscillating territory. CC 74 and 71 reach it from a controller, and the Modern engine's Vel>Flt drives it from velocity.

Chorus

A true stereo chorus, two taps in quadrature, designed so square waves widen instead of turning into vibrato. Subtle rates and depths are where it shines on chip tone.

Delay

Stereo ping-pong. Feedback saturates gently instead of running away, and each repeat passes through a darkening filter, so trails sink backward like tape. Free time from 10 ms to 2 seconds, or tempo-synced divisions from 1/1 to 1/32 with triplets.

Reverb

Size, damping, width, mix. From a small-room sheen to washed-out ambient tails; the Ambient Drone preset shows its long-tail behaviour.

After everything, a gentle soft limiter rounds off the output. Stack all five effects as hard as you like; the output cannot digitally clip, it just saturates musically.

The factory library

113 presets including Init: 75 for the Classic engine, 38 for Modern. Every list in the browser and the preset menu is alphabetical, so find things by name; the arrow buttons still walk category order for front-to-back auditioning. Both engines file into their own category folders, so Bass means Classic bass in Classic and Modern bass in Modern. Classic runs from the practical (Basics, Bass, Lead, Pad, Pluck/Key, Arp) through the percussive (Percussion, Rock, with drum kits mapped C2 kick, D2 snare, F#2 hat, A2 tom) to the theatrical (SFX, Atmosphere, Texture, Ensemble, Sequenced). Modern covers Basics, Bass, Lead, Pad, Pluck/Key, Texture and Arp. The Sequenced bank is the step sequencer showing off: hold one key, get a riff. The Split-mode Ensemble arrangements (Overworld, Demon Castle) are multitrack rigs: they expect per-channel MIDI from a DAW (1 = Pulse 1, 2 = Pulse 2, 3 = Triangle, 10 = Noise, 5 to 7 = VRC6), so a single keyboard channel plays only their Pulse 1 part. That is the routing working as designed, not a broken preset.

Your presets

Saved presets live as single files, one per preset, in ~/Library/Warpzone/Presets on macOS (the equivalent app-data folder elsewhere). Everything is captured: parameters, all eight step sequences, the works. Export writes a shareable .cartpreset; Import reads presets and .cartbank bundles, and a bank imports as its own category so it arrives as one tidy group in the browser.

VGM import

This one is special. Feed the Import dialog a .vgm or .vgz chip log and Warpzone studies how the music drove the 2A03: every write to the volume, pitch, and duty registers, frame by frame. Each distinct instrument it finds becomes a user preset, with the original's per-frame behaviour rebuilt as a step sequence at the source's own frame rate (60 Hz for NTSC, 50 Hz for PAL), and pitches read against the source region's clock. Load one, hold a key, and you are playing the instrument from the original soundtrack, macros and all. Imports land in the browser as one category per file, named after the source.

Where VGM files come from

Tracker software exports them, so your own compositions are the first and best source. The homebrew and demoscene communities release them freely, netlabels and chiptune archives distribute them with permission, and hardware loggers can capture the register stream from a running board. If you dump music from an 8-bit game you own, the law on personal-use copies varies by country, and weighing it is up to you.

Worth knowing what the import actually takes: register configurations and per-note envelopes: the instruments, never the melodies. Extraction ends at each note boundary by design, so a tune cannot pass through it. The music in any file you import belongs to whoever wrote it, and what you release built on these sounds is, as always, yours and your responsibility.

Playing

Channels

Presets and window

On Windows and Linux, read Cmd as Ctrl.

The badge at the top right tells the story: DEMO in red before activation, a quiet LICENSE after. In demo mode the instrument is fully functional, but it interrupts the audio with a short burst of noise about every 45 seconds. Everything else is identical to the licensed build.

Activating

Click the badge, paste the key from your purchase email, click Activate. The plugin checks in with the activation server once, binds the seat to your machine, and from then on verifies offline.

Seats

One license, three machines. To move on, click the badge on a machine you are retiring and choose Deactivate this machine; the seat frees up immediately. If that machine is dead and cannot deactivate itself, email support and we will release it.

Offline machines

A machine with no internet activates through staycoolandstaycool.com/warpzone/activate, from any online device. Copy the machine code from the license dialog on the offline machine, enter it on that page with your key, and paste the license it returns back into the dialog. To later release that machine's seat, the same page accepts its activated license (the file license.key in Warpzone's settings folder). The offline machine itself never connects.

Updates

Nothing checks by itself. Press Updates in the top bar and Warpzone asks the download server what the current version is; that request carries no license, no machine code, and nothing identifying. If there is something newer, Upgrade downloads the installer for your platform, checks it against the checksum published alongside it, and runs it. A download that does not match is discarded rather than opened.

One installer carries every format, so the plugins and the standalone update together; there is nothing to repeat per format. In the standalone, Warpzone closes while the installer works and opens again afterwards. Inside a host it cannot close the host for you, so quit that host when the installer asks. Either way your license stays activated and your presets stay where they are.

Crash reports

If the standalone app crashes, the next launch offers to send the report: version, OS, and a stack trace. No audio, no files, nothing personal, and nothing leaves the machine unless you say yes; decline once and it stops asking. Reports are written to disk either way, so you can read or attach them yourself. The plugin builds deliberately install no crash handler, because that would sit on top of your host's own crash reporting.

Questions, stuck keys, seat juggling: see staycoolandstaycool.com/warpzone/support, or email [email protected] with your order number.

Warpzone references the 2A03 sound generator and VRC6 expansion audio by their part designations. All synthesis is original; no ROMs, recordings, or code from any console are included.
